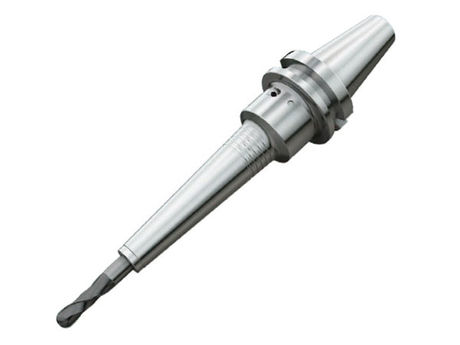

PHC・SBSlim Hydro Chuck
-
-
Cutter Shank dia. :φ3-25mm (0.125"-1.00")
Related Products / Accessories
New! Slim type hydraulic chuck!
* Cannot play the movie? Please download the movie file.
To download the file, right click on "Download" and select "Save Target As".
-
-
English (Short Ver.) Play Download (mp4:6MB) English Play Download (mp4:15MB)
* Cannot play the movie? Please download the movie file.
To download the file, right click on "Download" and select "Save Target As".

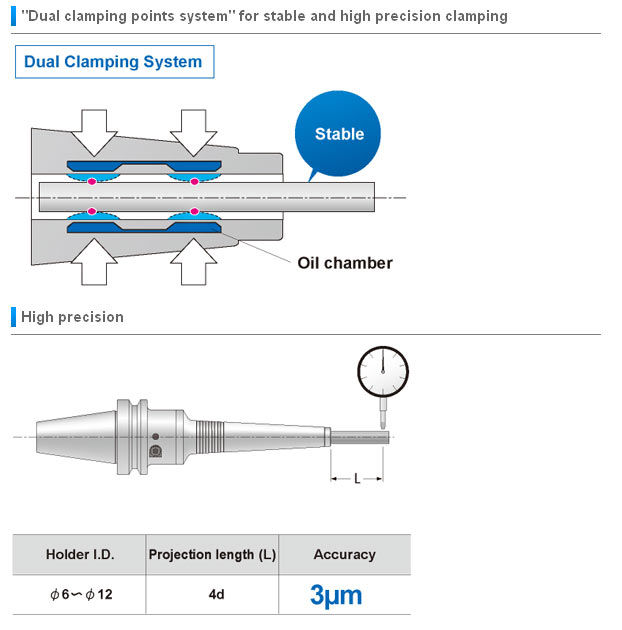

3 microns of runout at 4d!
Utilizes the superior clamping system of hydraulic tooling, but with the narrow body you'd expect from a shrink fit holder.
Clamping takes 5 seconds, with no additional equipment required.

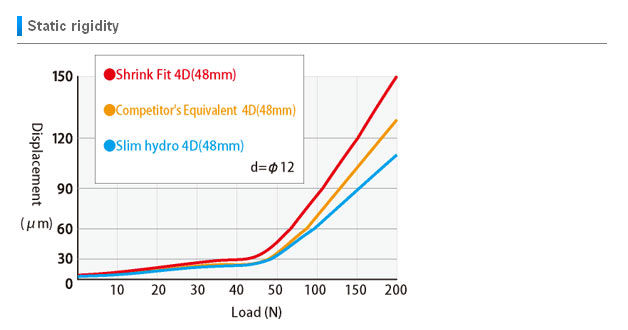

The hydraulic well surrounding the bore dampens cutting vibrations, greatly reducing chattering for a smoother finish!
~Available in BT, CAT 40 and CAT 50 & HSK shank types
~Other shank types available upon request
~Custom sizes are also available
