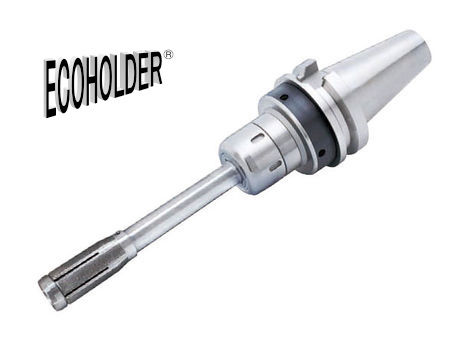

CTZ"R" Zero Runout Adjustment Holder for Large Diameters
-
-
Cutter Shank dia. ：φ25－42mm (1.000" - 1.250")
Related Products / Accessories- MC - Straight Collet
- MC-OH - Coolant Collet
(for Tool with Coolant Hole) - MC-C - Coolant Collet
(for Tool without Coolant Hole) - MCA - Straight Collet
- BL - Back-up Screw (for BT)
- MA - Morse Taper Adapter (with Tr. Nut)
- MAB - Morse Taper Adapter
- JA - Jacobs Adapter (with Tr. Nut)
- JAB - Jacobs Adapter
- SPZ-2 - "R" Zero Setter

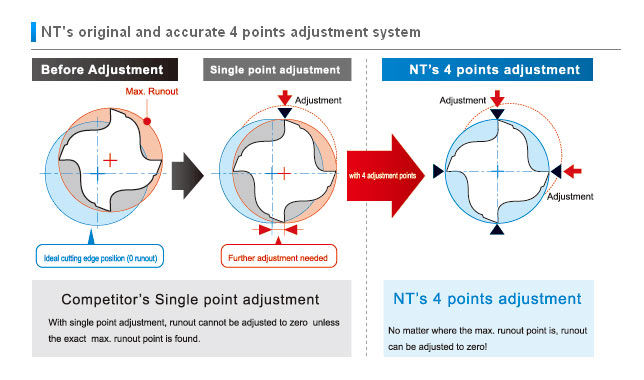

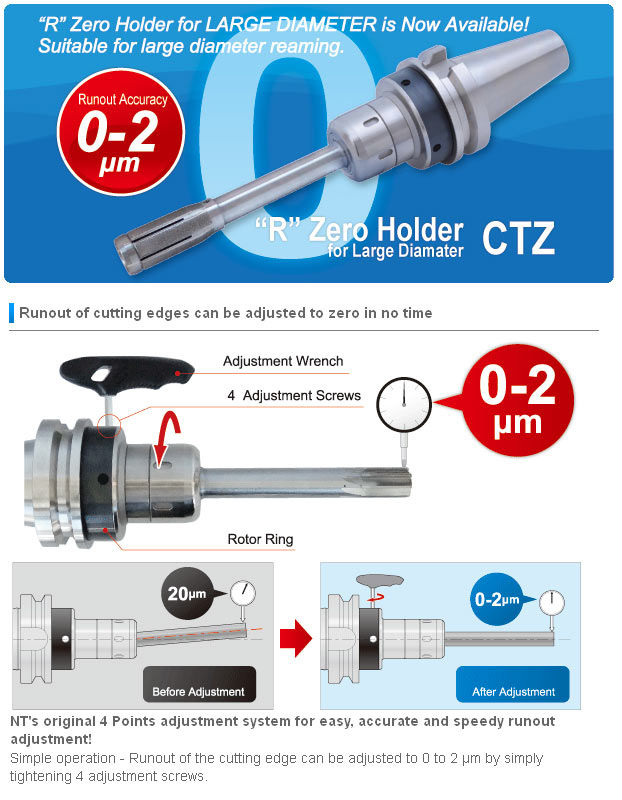

NT's original 4 points adjustment system for easy, accurate and speedy runout adjustment!
* Cannot play the movie? Please download the movie file.
To download the file, right click on "Download" and select "Save Target As".
-
-
English Play Download (mp4：9MB)
* Cannot play the movie? Please download the movie file.
To download the file, right click on "Download" and select "Save Target As".
-
-
English Play
* Cannot play the movie? Please download the movie file.
To download the file, right click on "Download" and select "Save Target As".
615.771.1899
615.771.0121
~Available in BT, CAT, HSK, AHO & UTS shank types
~Other shank types available upon request
~Custom sizes are also available
