Products

Home ＞ Products ＞ NC Tooling System ＞ Drill Holder with Easy Tool Length Adjustment

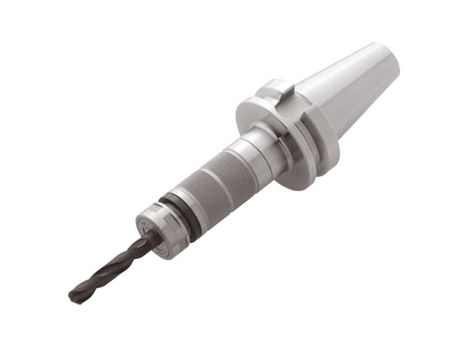

SDMDrill Holder with Easy Tool Length Adjustment

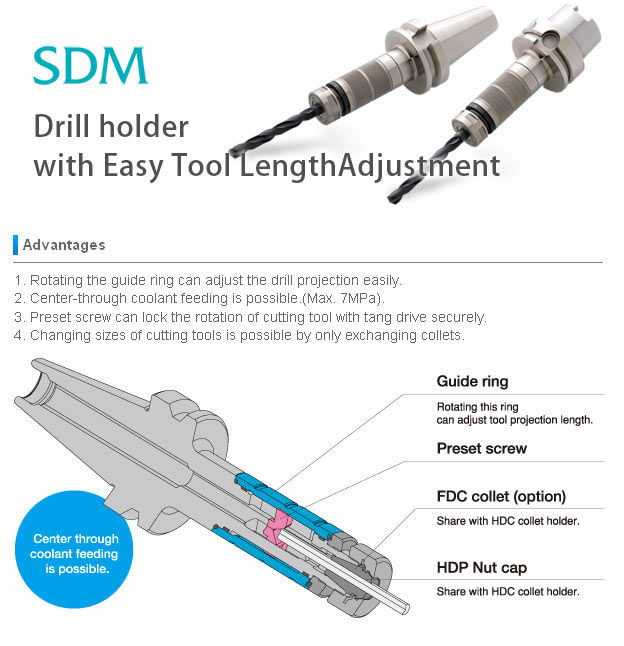

Collet holder with easy projection length adjustment system.

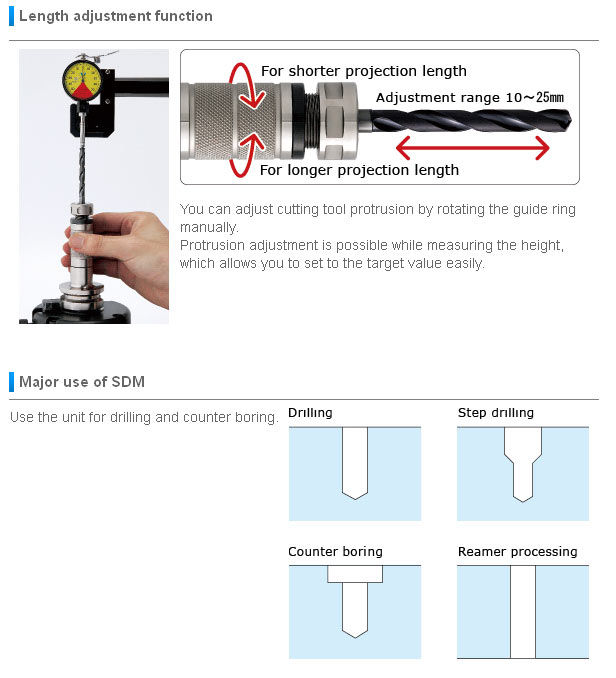

Projection length of the cutting tool can be adjusted quickly by turning ring on the holder.
Used with FDC Collets.
~Available in BT, CAT 40 and CAT 50, AHO, HSK & UTS shank types
~Other shank types available upon request
~Custom sizes are also available
