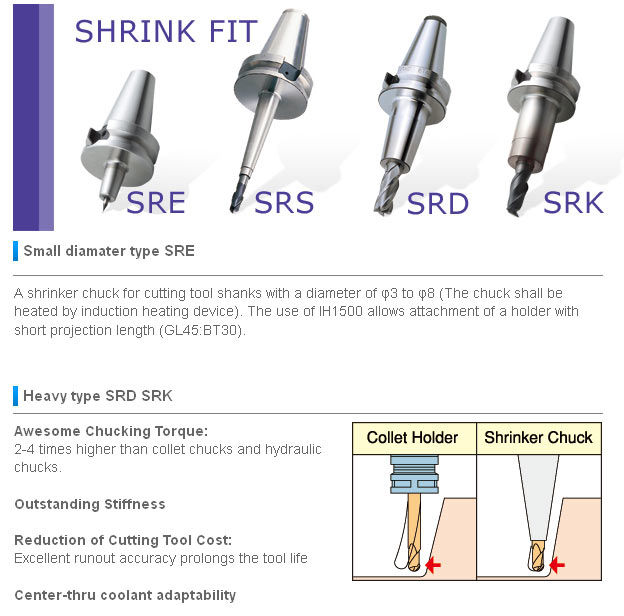

SRDShrink Fit Chuck (DIN Standard)

DIN standard shrink fit chuck.

Shrinkage method sets a cutting tool firmly by heating and cooling the chuck. High precision and strong chucking.
~Available in BT, CAT 40 and CAT 50, AHO & HSK shank types
~Other shank types available upon request
~Custom sizes are also available
