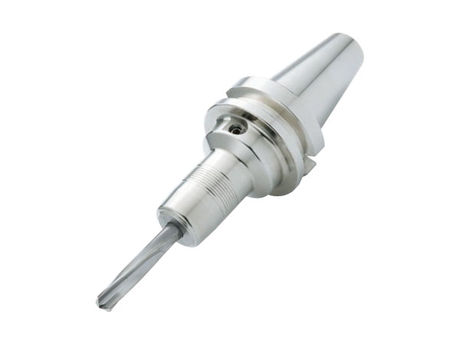

PHC・APower Hydro Chuck

Hydraulic Chuck with collet flexiblity.

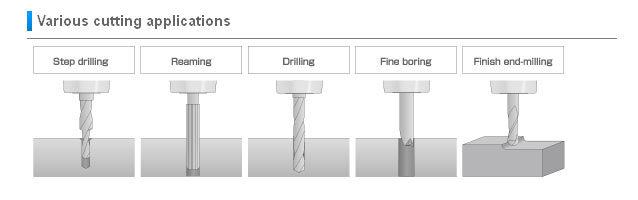

Suitable for high precision cutting in a variety of machining environments.

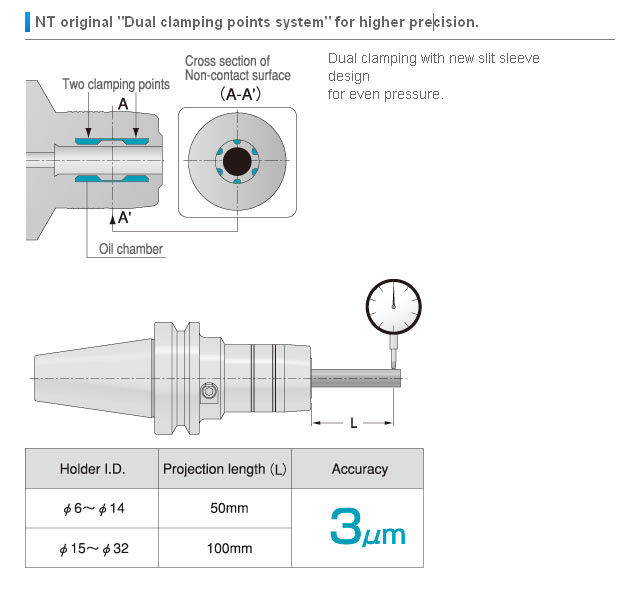

3 microns of runout at 4d!
Clamping takes 5 seconds, with no additional equipment required.
The hydraulic well surrounding the bore dampens cutting vibrations, greatly reducing chattering for a smoother finish!

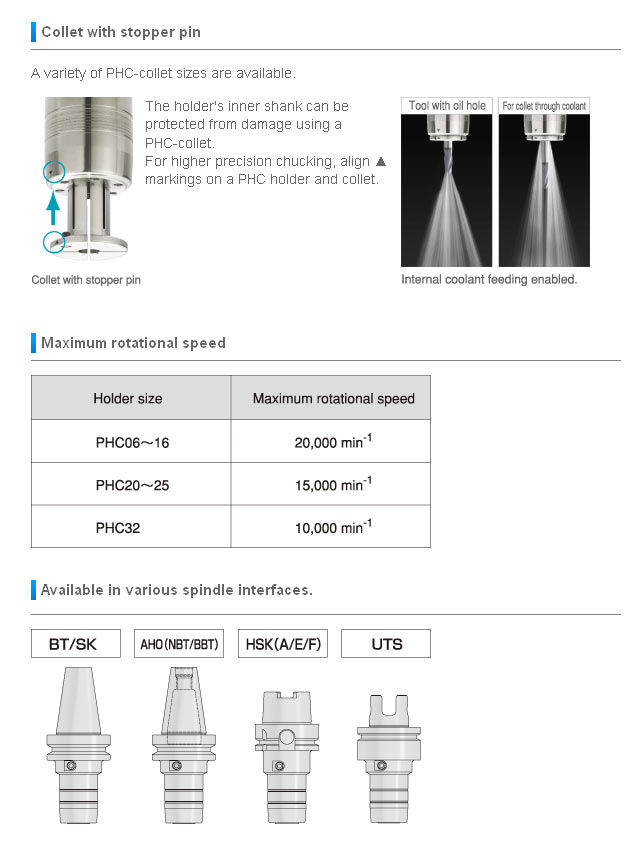

Coolant compatible with direct chucking, or with metal-sealed PHS collets - no sealing rings or coolant caps required!
~Available in BT, CAT 40 and CAT 50, HSK & UTS shank types
~Other shank types available upon request
~Custom sizes are also available
